Working area: 3000 x 1500 mm

Standard equipment

machine

• Closed machine frame
• Torque drive in combination with linear direct drives
• Closed beam guidance via fiber optic cable (FOC)
• Machine cooling unit (water-air)
• Integrated control cabinets with interior lighting
• Automatic pallet changer in longitudinal direction
• Wide longitudinal conveyor belt
• Power supply for TruDisk via the machine
• Workspace lighting
• Position laser diode
• Spraying device
• PierceLine
• FocusLine
• NitroLine
• PlasmaLine
• Automatic nozzle cleaning

TRUMPF Laser

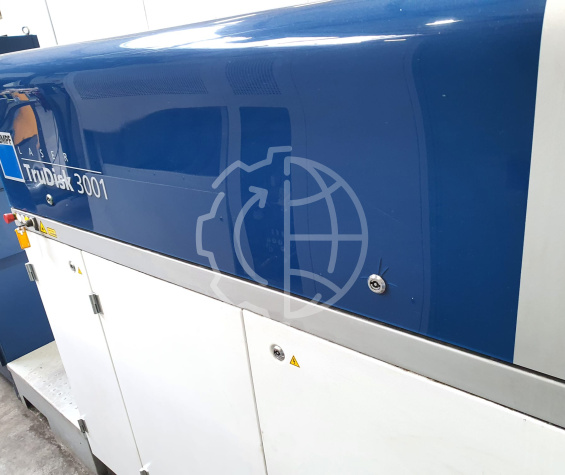

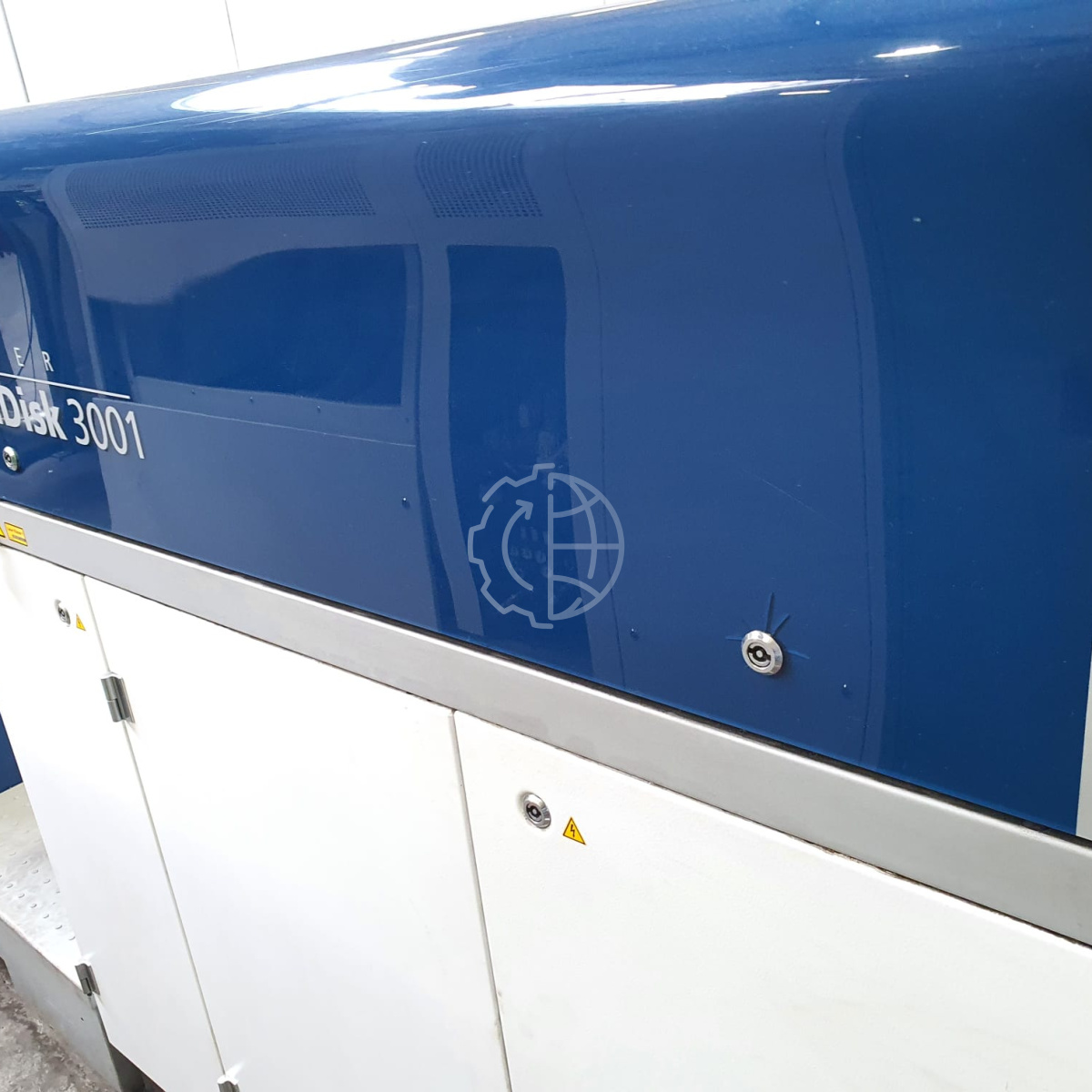

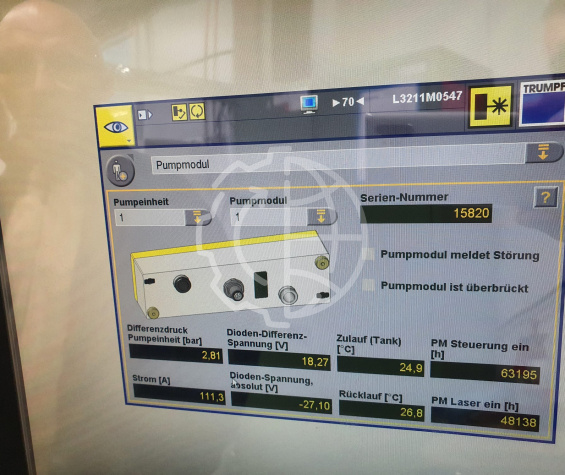

• TruDisk 3001 solid-state laser with one LLK outlet
• Fiber optic cable according to standard layout
• Laser cooling unit (water-air)

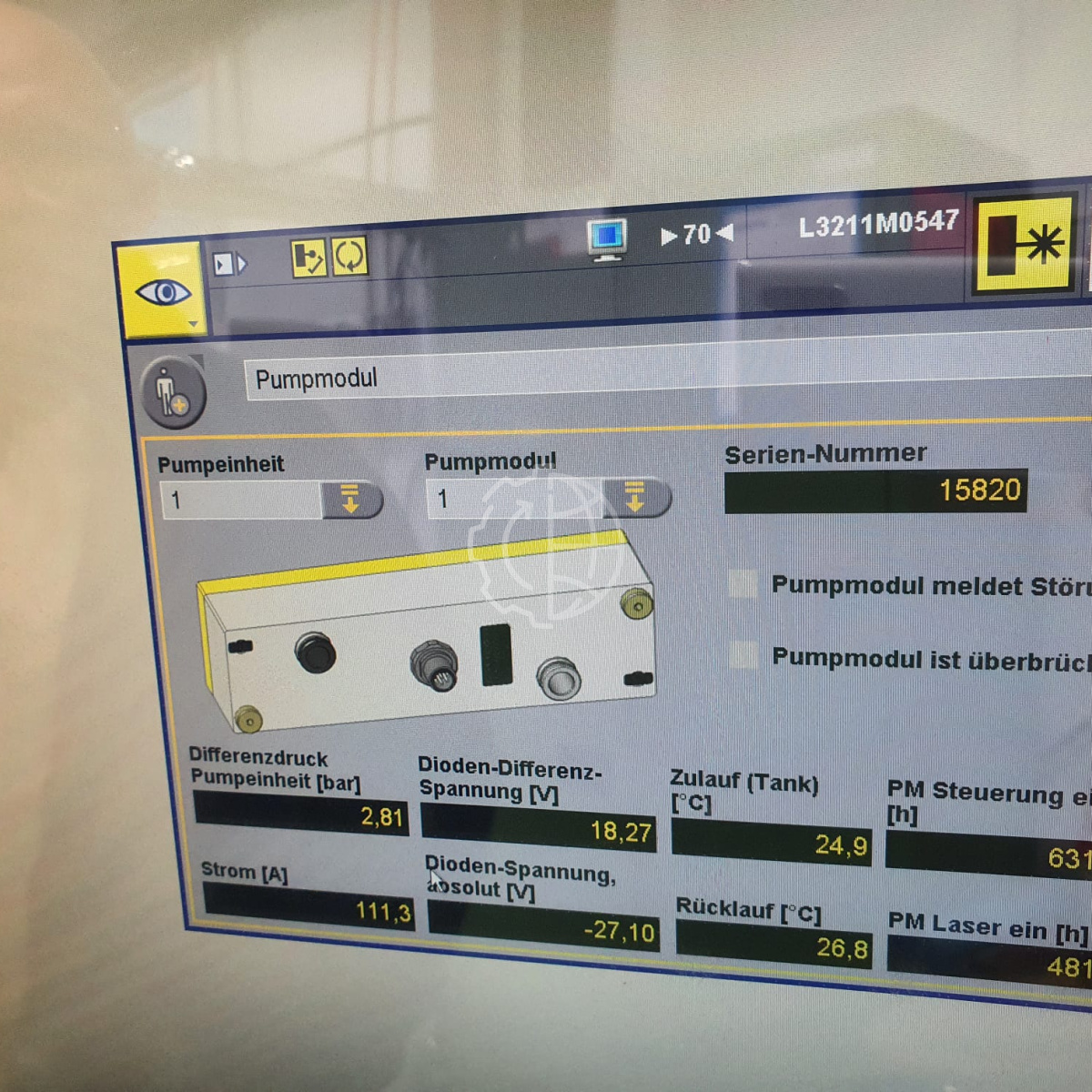

• Excitation via pump diodes

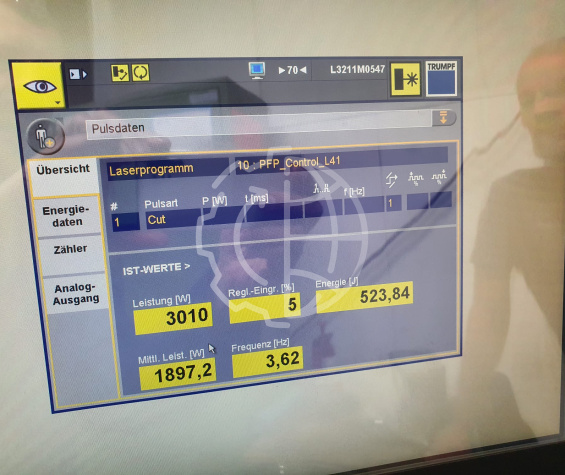

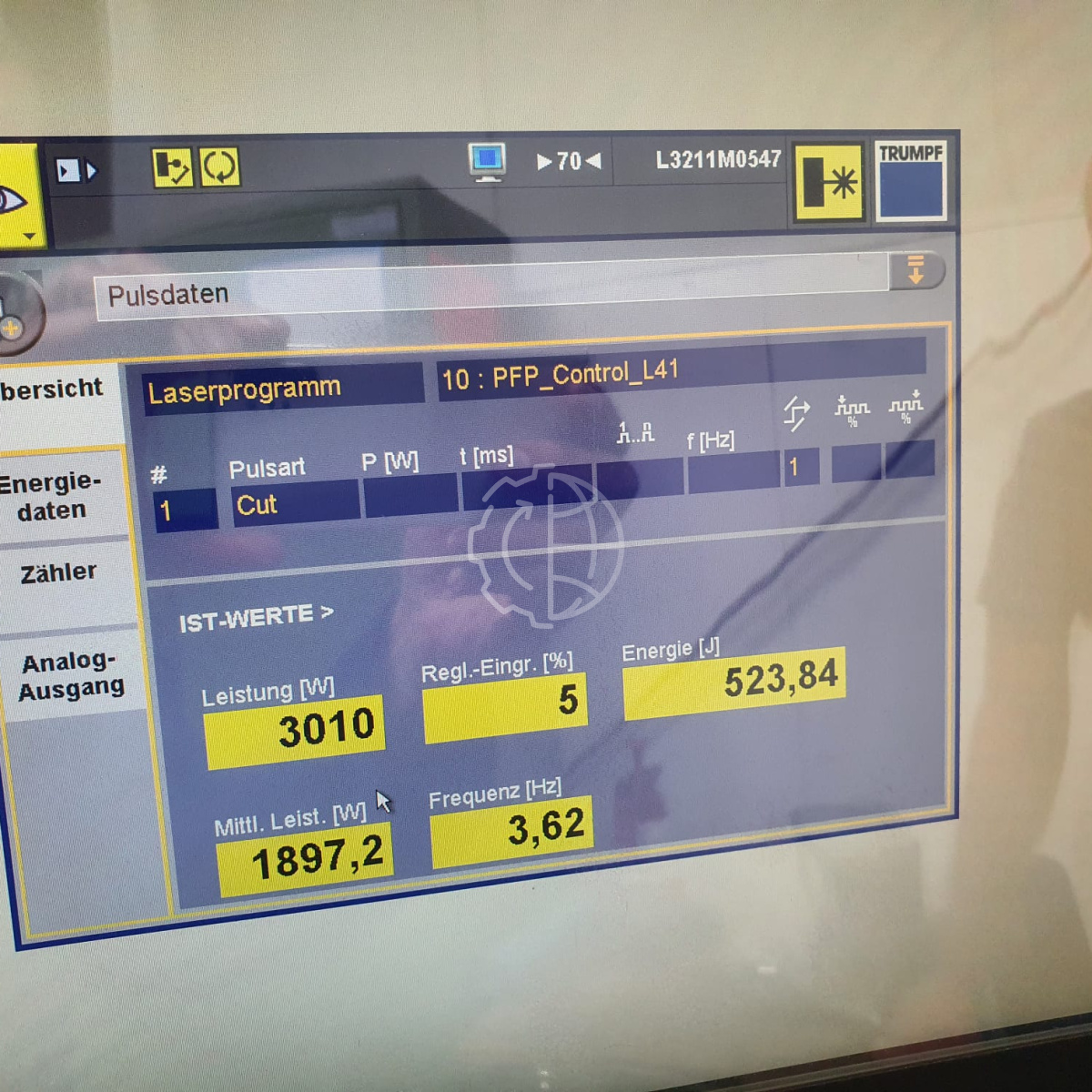

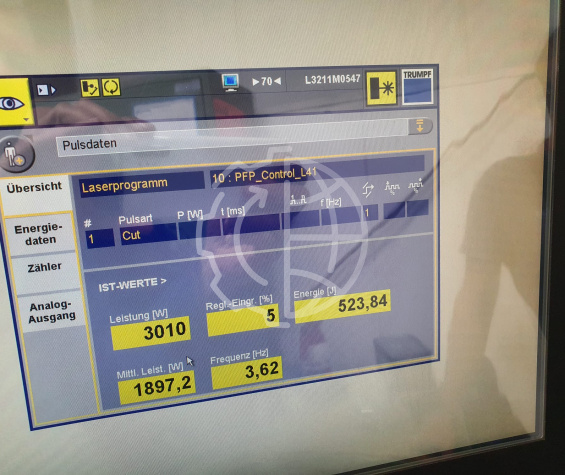

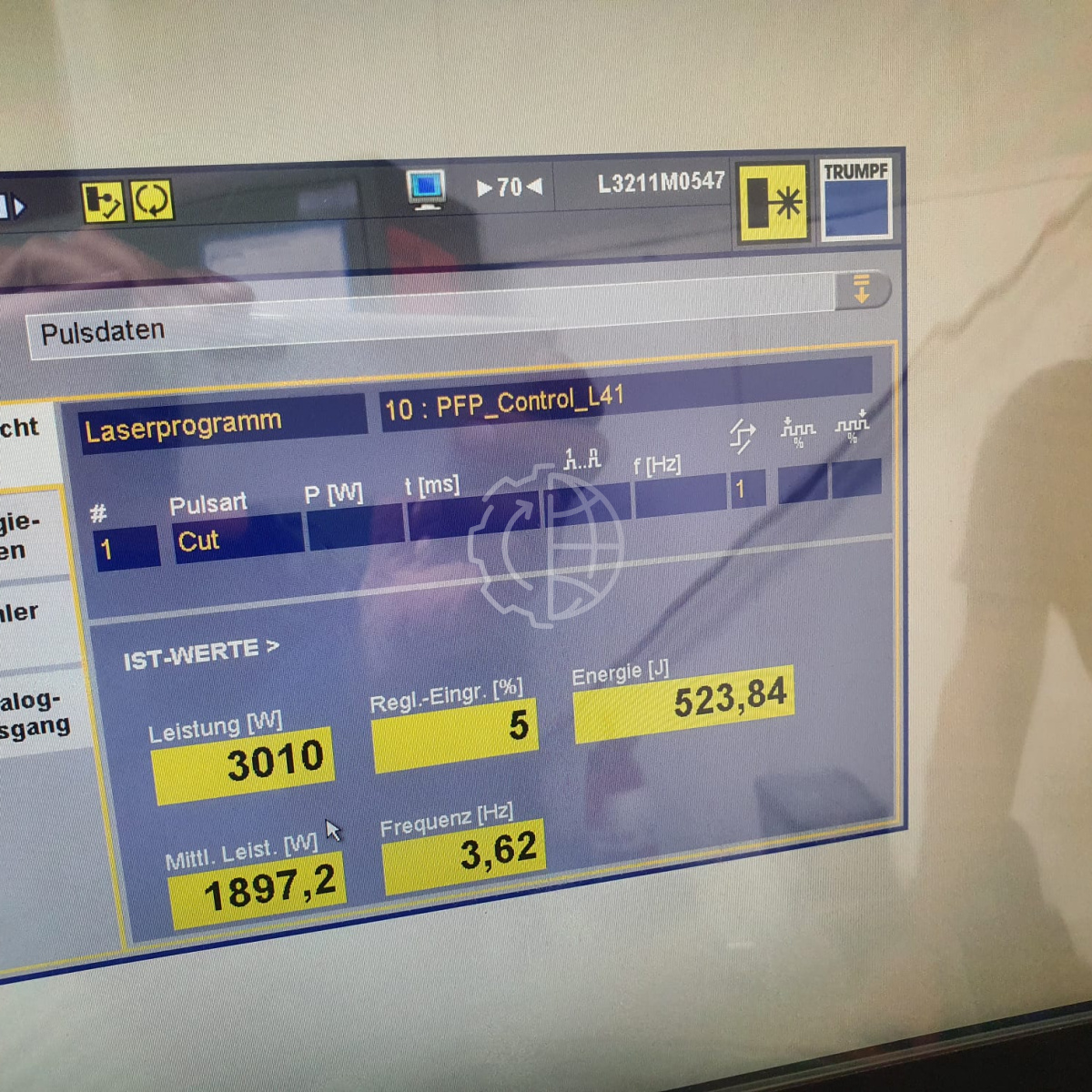

• Laser power control

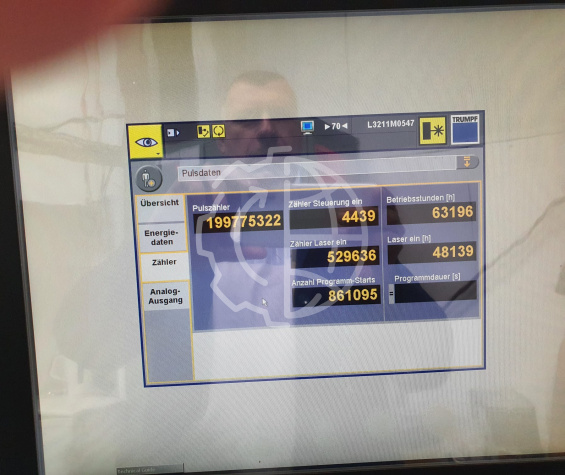

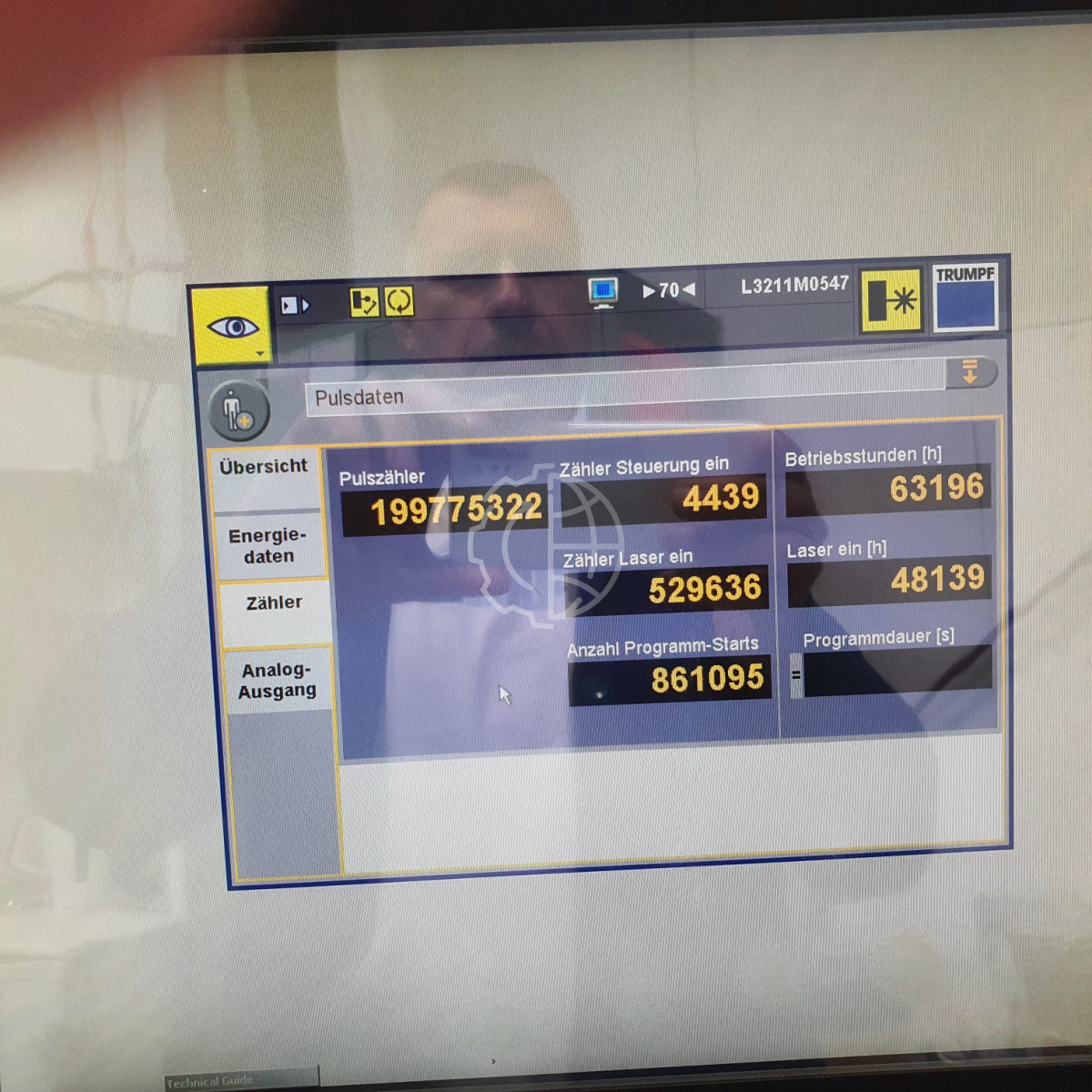

• Laser logbook function

Cutting head

• Universal cutting unit with fully adaptive lens system
• Protective glass against lens contamination
• Condition check of the protective glass
• ControlLine: Height control and sheet metal outer edge detection

steering

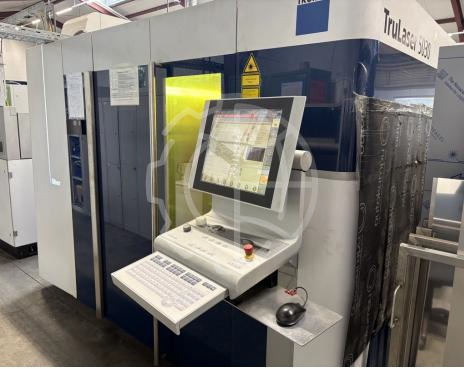

• SINUMERIK 840D SL control unit
• 17" color touchscreen
• Simple workshop programming
• Extended workshop programming
• Rapid replenishment
• Integrated technology data
• Automatic shut-off
• FastLine
• AdjustLine
• Teleservice via Internet data transmission
• USB interface
• RJ-45 network port security
• CE marking
• Light barriers
• Multi-chamber extraction system
• Integrated compact dust extraction system
• Fire alarm system in the compact dust extractor
• Machine enclosure, certified viewing window, door on the right
• Electric sunroof
