0128285 Z-axis drive Trumpf 3030, 3040, 3060
  • Germany
  • 12
  • Designation:0128285 Z-axis drive
  • Manufacturer:Trumpf (show all)
  • Model:3030, 3040, 3060
  • Manufacture year:2008
  • Conditions:used (very good)
Price on request
Description

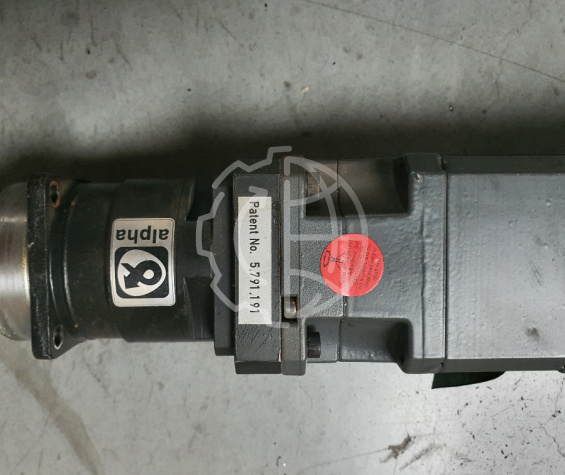

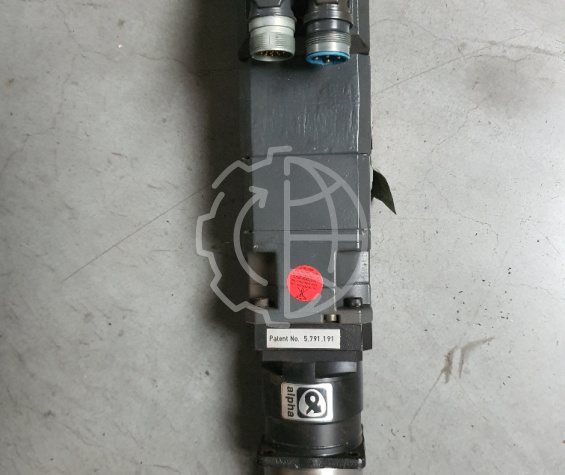

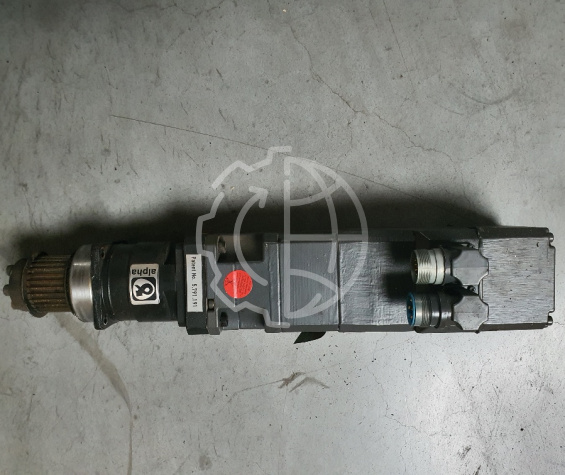

0128285 Z-axis drive for the Trump 3030, 3040, 3060 laser cutting system, used.

Manufacturer: Siemens 3 Phase Brushless Servo Motor

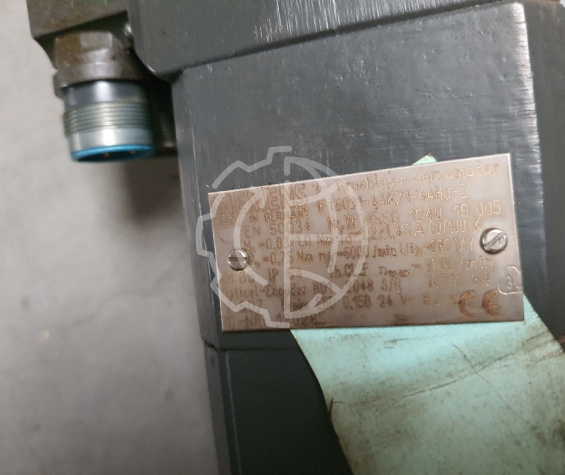

SIEMENS
Brushless servo motor
Made in Germany
1FT6037-4AK71-4AH0-Z
EN 60034
No. VF M550 1240 19 005
Mₙ = 0.83/1.0 Nm Io cos φ 0.77
Nm Io =1.2/1.45 A 60/100 K
nₙ = 6000 /min
UIn = 282 VY
IN B5
IP64
Th. CLF
Dmax = 9700 rpm
Optical encoder B01: 2048 S/R KTY S4
Z: S07
Brake EDD 0.158 24 V 8.2 W
ID No.: 128285

Errors in the data and prior sale excepted.
