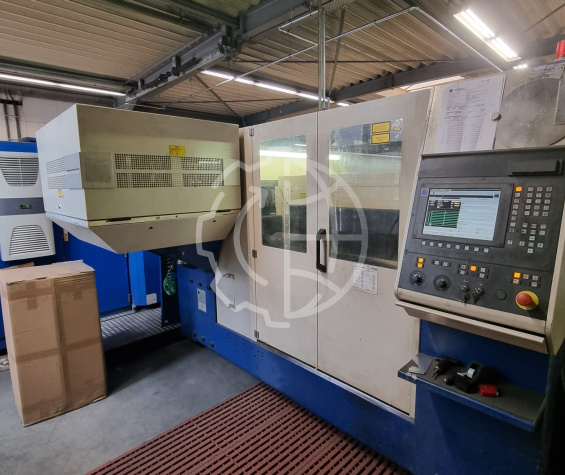

TRUMPF TruLaser 3030 – 4000 Watt

TECHNICAL DATA:

Manufacturer: TRUMPF
Type: TruLaser L 3030 – 4000w
Year of manufacture: 2006
Working area: 3,000 x 1,500 x 115 mm
Control unit: Siemens Sinumerik 840 D
Laser power: 4,000 watts
Max. sheet thickness structural steel: 20 mm
Max. sheet thickness stainless steel: 12 mm
Max. sheet thickness aluminum: 8 mm

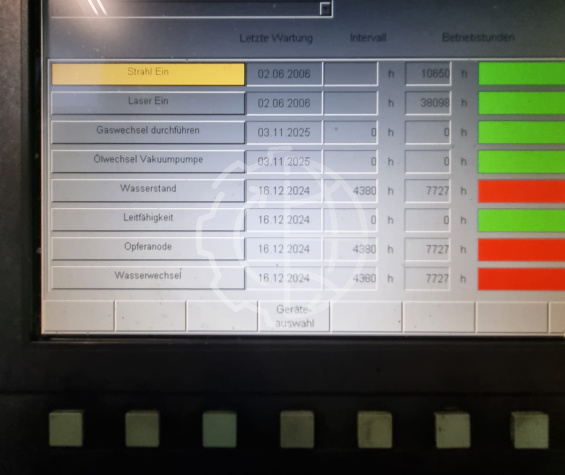

Operating hours: Laser on approx. 39,000, beam on approx. 11,000

STANDARD EQUIPMENT:

- closed machine frame with integrated laser unit
Laser unit: CO2 laser TLF 2000 high-frequency excited, maintenance-free turbo radial blower,
Reflecting telescope, cooling unit, logbook function
- automatic pallet changer
- Longitudinal conveyor belt for small parts/waste
- Drives: maintenance-free three-phase servo motors
- Quick-change cutting head device
- Laser cutting head with 5" lens and laser cutting head with 7.5" lens
- Programmable cutting gas pressure setting
- APC capacitive height control and process control
- Automatic focus position adjustment AutoLas Plus
- Laser power control
- Position laser diode
- HI-LAS high-pressure cutting
- Fast processing with SprintLas
- ContourLas for creating small holes
- PMS plasma sensors
- Automatic sheet metal outer edge detection
- Programmable power cycles
- Microweld
- Automatic shut-off
- Workspace lighting

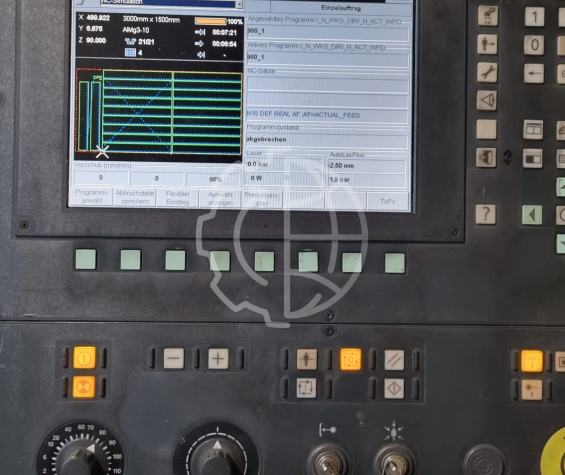

- Sinumerik 840D control system: open, PC-based control system, easy operation, online help,
Integrated e-shop, diagnostic functions, maintenance log, technology data, teleservice
- Workshop programming ToPs 100 lite
- Safety: multi-beam light barriers, beam guidance fully encapsulated and ventilated,
Monitoring system, multi-chamber extraction and compact dust collector, protective cabin
- 3.5" floppy disk drive
- TFT color screen
- Electrical equipment: Voltage 400 V / 50 Hz
- Paint finish: Standard RAL 9002/5010
